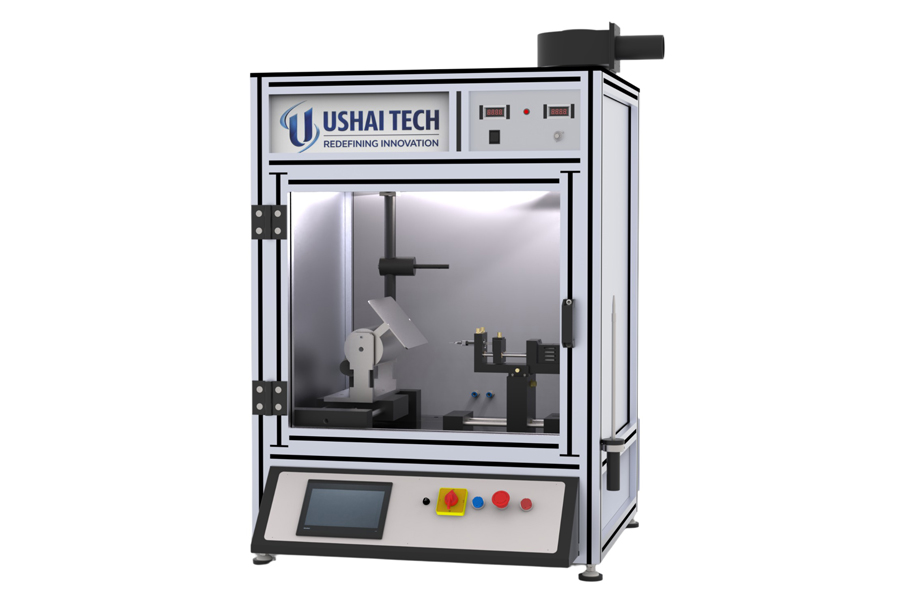

Electrospinning Machine
Model No: Usha Spinning-01
Spinning Setup
- Horizontal spinning setup
- Distance between the spinneret and collector: up to 250 mm
- Display for temperature and humidity monitoring
- High-speed exhaust blower to ensure protection from hazardous solvent fumes
Infusion System
- Single-channel syringe pump
- Infusion operation mode
- Control of volume, time, and flow rate
- Compatible syringe volume range: 5 µL to 20 mL
- Flow rate range: 1 µL/min to 3 mL/min (±0.05%)
High Voltage
- Output voltage: 0 to 30 KV ± 0.05%
- Voltage adjustment: 0.1 KV
- Output current: 0 to 400 µA
- Digital voltage and current monitoring display
- Overload trip- unit shut down if current exceeds 20% of the maximum output current
- Auto cut high voltage protection when door is opened
Collectors
- Plate collector: Width – 220 mm, Length – 150 mm, Thickness – 10 mm
- Drum collector: Diameter – 85 mm, Length – 165 mm
- Speed range: 200–5000 RPM
Linear stage
- X-Axis: Switch Automated distance adjustment ( distance between spinneret and collector) Y-Axis: Switch Automated distance adjustment
Model No: Usha Spinning-02
Spinning Configuration
- Vertical spinning
- Horizontal spinning
- Co-spinning
- Distance between spinneret and collector: up to 250 mm
- Digital temperature control (ambient to 60 °C) for monitoring and maintaining process conditions Digital humidity control (ambient to 90% RH) for monitoring and maintaining process conditions
- High-speed exhaust blower for protection against hazardous solvent fumes
- UV light: 10 W (for sterilization)
Infusion System
- Dual-channel syringe pumps
- Supports infusion operation Control over volume, time, and flow rate
- Compatible syringe capacity: 5 µL to 20 Ml
- Flow rate range: 1 µL/min to 3 mL/min (±0.05%)
Spinneret
- Single nozzle configuration
- Co-axial nozzle
- Multi-nozzle system
- Under-solvent spinning capability (compatible with water, acetone, methanol, and other solvents)
High Voltage System
- Output voltage range: 0 to 50 kV (±0.05%)
- Voltage adjustment resolution: 0.1 kV
- Output current range: 0 to 400 µA
- Digital display for monitoring voltage and current
- Overload protection – the unit shuts down if the current exceeds 20% of the maximum output current
- Automatic high-voltage cut-off protection when the door is opened
Collectors
- Plate collector: Width – 220 mm, Length – 150 mm, Thickness – 10 mm or Width – 255 mm, Length – 150 mm, Thickness – 10 mm
- Drum collector: Diameter – 85 mm, Length – 165 mm or Diameter – 100 mm, Length – 200 mm
- Disk collector: Diameter – 85 mm, Thickness – 10 mm or Diameter – 100 mm, Thickness – 10 mm
- Rotational speed: 200–5000 RPM
Linear stage
- X-Axis: Software Automated distance adjustment
- Y-Axis: Programmable transverse motion Stroke distance: 300 mm Speed :- Three speed adjustment (Slow, Medium and Fast)
- Z-Axis: Manual distance adjustment
Operational Control and Monitoring System
- Equipped with an HMI/PLC-based operational control system integrated with pre-installed software for system monitoring and process management.
- Provision for camera interface to enable visual observation and monitoring of the spinning process during operation
Model No: Usha Spinning-03
Spinning Configuration
- Vertical spinning
- Horizontal spinning
- Both Side spinning
- Co-spinning
- Distance between the spinneret and the collector: up to 250 mm
Digital temperature control
- Digital temperature control (ambient to 60 °C) for monitoring and maintaining process conditions
- Digital humidity indicator for environmental monitoring
- High-speed blower to provide protection from hazardous solvent fumes
- UV light: 10 W (for sterilization purposes)
Infusion System
- Dual-channel syringe pumps
- Supports infusion operation
- Control of volume, time, and flow rate
- Compatible syringe size: 5 µL to 20 mL
- Flow rate range: 1 µL/min to 3 mL/min (±0.05%)
Spinneret System
- Single-nozzle configuration
- Co-axial nozzle arrangement
- Multi-nozzle setup with four interchangeable needle geometries
- Under-solvent spinning capability
High Voltage System
- High voltage units: Two
- Output voltage range: 0 to 50 kV (±0.05%)
- Voltage adjustment resolution: 0.1 kV
- Output current range: 0 to 400 µA Digital display for monitoring voltage and current
- Overload protection – the unit shuts down if the current exceeds 20% of the maximum output current
- Auto cut high voltage protection when door is opened
Linear stage Both Side
- X-Axis:- Software Automated distance adjustment
- Y-Axis: Programmable transverse motion Stroke distance: 300 mm Speed:- Three speed adjustment (Slow, Medium and Fast)
- Z-Axis: Manual distance adjustment
Operational Control
- HMI PLC / Branded Laptop with preinstalled
- software Software USB drivers
